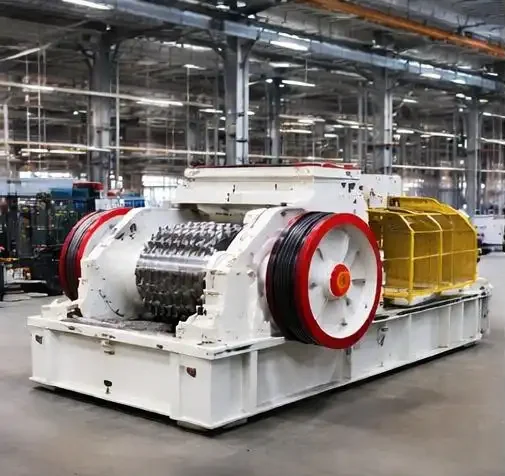

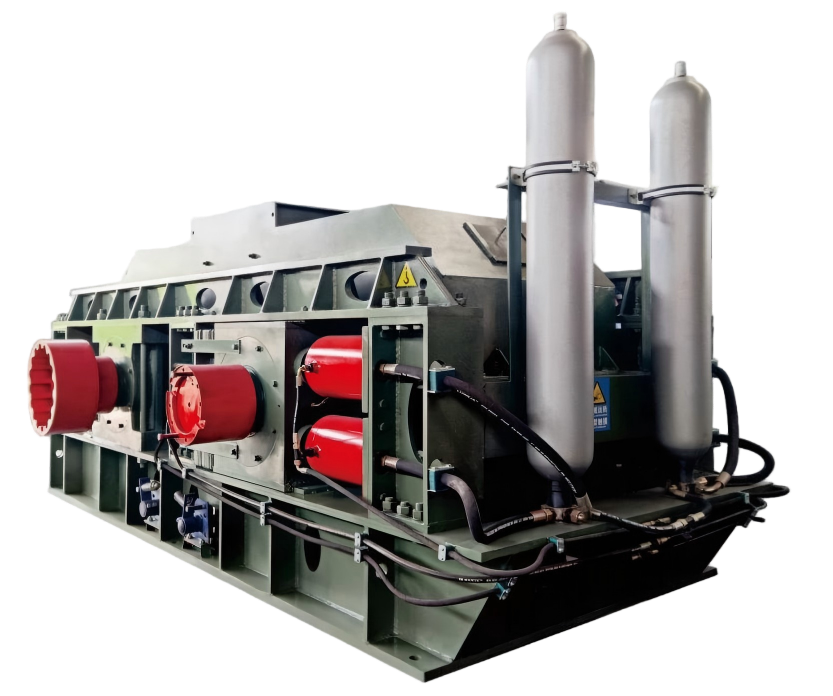

The PG Roller Crusher is built for continuous heavy-duty operation. Equipped with wear-resistant alloy rollers and a high-strength frame structure, it delivers stable crushing performance with minimal downtime.
Its adjustable gap control system allows precise output sizing, while the optimized transmission system reduces power consumption and mechanical stress.
Designed for long service life and easy part replacement, it is widely applied in cement plants, mining operations, and bulk material processing industries.
The PG-Series Roller Crusher is engineered for secondary and fine crushing of medium-hard and brittle materials. Its dual-roller compression mechanism ensures controlled particle size reduction while minimizing excessive fines.
The adjustable discharge gap allows precise output size control, making it suitable for applications requiring uniform material grading. The heavy-duty frame structure and wear-resistant alloy rollers ensure stable performance under continuous industrial operation.
Designed for seamless integration into crushing systems, the PG Roller Crusher works efficiently with feeders, conveyors, and screening equipment in mining and cement production lines.
The PG Roller Crusher operates based on a compression crushing mechanism between two counter-rotating rollers. Raw material is drawn into the crushing chamber through friction between the rollers and the material surface.
As the rollers rotate inward, the material is compressed and fractured under high pressure. The adjustable gap between the rollers determines the final output size, ensuring uniform particle distribution and minimal over-crushing.
This low-speed compression process reduces dust generation, vibration, and excessive fines compared to impact-based crushing systems.
1. Material Feeding – Bulk material enters the crushing zone from the top feed opening.
2. Roller Compression – Two counter-rotating rollers pull the material inward and applycompressive force.
3. Controlled Size Reduction – Material fractures progressively under pressure.
4. Gap Adjustment – Adjustable roller spacing defines final discharge size.
5. Stable Continuous Operation – The drive system ensures synchronized rotation foruninterrupted production. final output size.
Feeding → Roller Compression → Controlled Discharge → Screening (Optional) → Maintenance Access
| Modèle | Diamètre du rouleau (mm) | Largeur du rouleau (mm) | Taille d'alimentation (mm) | Taille de sortie (mm) | Capacité (t/h) | Puissance du moteur (kw) |
|---|---|---|---|---|---|---|
| 2PG400×250 | 400 | 250 | <25 | ≤2-8 | 2-10 | 5.5×2 |
| 2PG400×400 | 400 | 400 | <30 | ≤2-10 | 3-15 | 7.5×2 |
| 2PG610×400 | 610 | 400 | <35 | ≤2-15 | 6-25 | 15×2 |
| 2PG750×500 | 750 | 500 | <40 | ≤2-15 | 10-50 | 22×2 |
| 2PG800×600 | 800 | 600 | <40 | ≤2-20 | 15-60 | 30×2 |
| 2PG800×800 | 800 | 800 | <50 | ≤2-20 | 25-80 | 37×2 |
| 2PG1000×800 | 1000 | 800 | <50 | ≤2-25 | 40-100 | 55×2 |
| 2PG1200×1000 | 1200 | 1000 | <60 | ≤2-25 | 60-170 | 90×2 |
| 2PG1500×1000 | 1500 | 1000 | <60 | ≤2-30 | 100-280 | 132×2 |
| 2PG1800×1000 | 1800 | 1000 | <80 | ≤2-30 | 180-380 | 220×2 |
| 2PG2000×1200 | 2000 | 1200 | <80 | ≤2-30 | 240-490 | 315×2 |
| 4PG400×400 | 400 | 400 | <20 | ≤0.3-10 | 2-20 | 11+15 |
| 4PG600×500 | 600 | 500 | <30 | ≤0.3-10 | 5-45 | 30+37 |
| 4PG800×600 | 800 | 600 | <40 | ≤0.3-10 | 8-70 | 37+45 |
| 4PG800×900 | 800 | 900 | <60 | ≤0.3-10 | 12-100 | 45+55 |
| 4PG800×1200 | 800 | 1200 | <60 | ≤0.3-10 | 20-130 | 55+75 |
| 4PG1000×1200 | 1000 | 1200 | <80 | ≤0.3-10 | 30-180 | 75+90 |
| 4PG1200×1200 | 1200 | 1200 | <90 | ≤0.3-10 | 45-260 | 90+110 |
| 4PG1200×1600 | 1200 | 1600 | <90 | ≤0.3-10 | 55-320 | 110+132 |
| 4PG1200×1800 | 1200 | 1800 | <90 | ≤0.3-10 | 70-400 | 132+160 |
Customization Options:Our engineering team provides tailored configurations based on project requirements, including IEC/NEMA standard motors (ABB, Siemens, WEG), hydraulic gap adjustment systems, wear-resistant roller materials, and automated lubrication units.
Voltage standards, control systems (PLC integration), and structural reinforcement can be customized to match local operating conditions and plant layouts.
Equipped with high-strength alloy rollers and a reinforced structural frame, the PG Roller Crusher ensures stable crushing performance with reduced wear and extended service life under continuous industrial operation.
The adjustable discharge gap mechanism allows accurate control of final product size, delivering consistent particle grading while minimizing over-crushing and excessive fines.
The low-speed compression crushing method reduces power consumption, vibration, and dust generation compared to impact-based crushing equipment, improving overall operating efficiency.
Synchronized dual motors provide balanced torque transmission and stable rotation, ensuring reliable performance even under high-load and abrasive working conditions.
The optimized machine layout and replaceable wear components simplify maintenance procedures, reduce downtime, and lower long-term operating costs.
• Limestone and clinker crushing in cement production lines
• Coal and slag processing in industrial plants
• Secondary and fine crushing in mining operations
• Aggregate production requiring controlled particle size
For optimal system performance, the PG Roller Crusher is typically integrated with:
• Vibrating feeder for regulated material feeding
• Belt conveyor for smooth discharge handling
• Screening equipment for particle size classification
• Optional dust collection system for environmental compliance
Configuration:
Feeder → Jaw Crusher → PG Roller Crusher → Belt Conveyor → Screening System
Recommended for:
Medium-hard materials requiring controlled secondary crushing and uniform output size in mining and cement production lines.
Configuration:
Feeder → Primary Crusher → PG Roller Crusher → Vibrating Screen → Belt Conveyor
Recommended for:
Applications demanding precise particle grading and reduced over-crushing, such as clinker, limestone, and slag processing.
Configuration:
Feeder → Primary Crusher → PG Roller Crusher → Screening Unit → Return Conveyor (Closed Circuit)
Recommended for:
Continuous industrial production lines requiring high efficiency, adjustable discharge size, and stable throughput.
• Designed in accordance with international industrial safety standards.
• Reinforced steel frame with precision welding for structural stability.
• Wear components tested for hardness and dimensional accuracy.
• Each unit factory-tested for balance and discharge precision.
• Optional overload protection system for equipment safety.
• Guarded drive system and emergency stop controls included.
• Optional centralized lubrication for smoother operation.
• Ensures reliable performance under continuous heavy-duty conditions.
Provide your material specifications and production targets.
Our engineers will recommend the most suitable model and configuration within 24–48 hours.
Material Type • Feed Size • Required Capacity • Output Size
