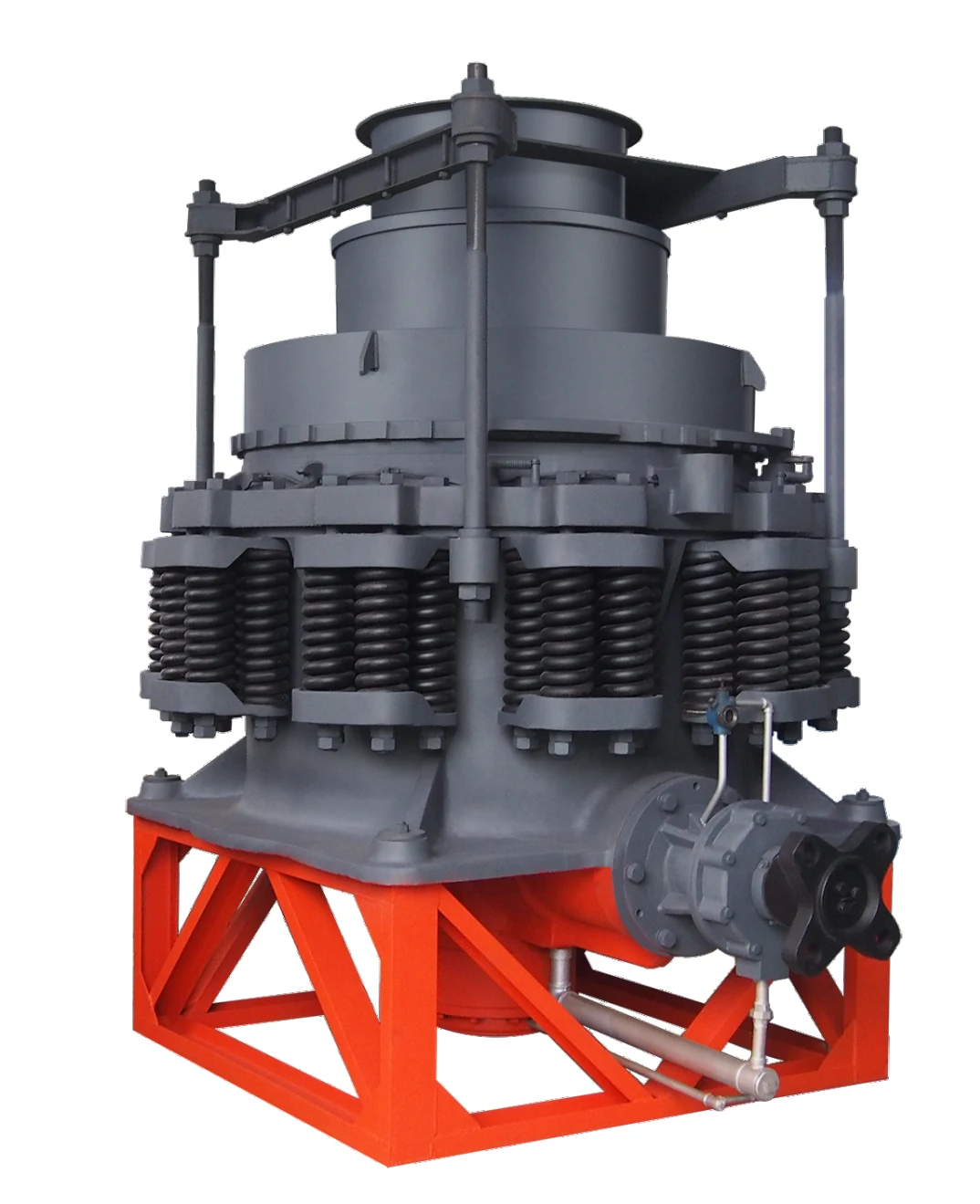

The PY Spring Cone Crusher is a highly efficient crushing machine, suitable for crushing ores and rocks of medium hardness, and widely used in industries such as metallurgy, construction, and chemical. It features a compact structure, simple operation, large crushing ratio, and high production capacity. The machine is equipped with a spring protection device, which effectively prevents damage to the equipment in the event of overload. With strong adaptability, it can handle materials of various sizes, making it ideal for medium-sized fine crushing operations.
| Model | Max Feeding Size (mm) | Adjustable Range of Outlet (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PYB600 | 65 | 12-25 | 20-40 | 30 | 5 | 2243×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 30 | 5.5 | 2243×1370×1675 |
| PYB900 | 115 | 15-50 | 50-90 | 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 55 | 11.2 | 2692×1640×2350 |
| PYD900 | 45 | 3-13 | 20-55 | 55 | 11.2 | 2692×1640×2350 |
| PYB1200 | 145 | 20-50 | 110-168 | 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 110 | 25 | 2790×1878×2844 |
| PYD1200 | 50 | 3-15 | 18-105 | 110 | 25.6 | 2790×1878×2844 |
| PYB1750 | 215 | 25-60 | 280-480 | 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 115-320 | 160 | 50.3 | 3910×2894×3809 |
| PYD1750 | 85 | 5-15 | 75-230 | 160 | 50.4 | 3910×2894×3809 |
| PYB2200 | 300 | 30-60 | 490-800 | 260/280 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 200-580 | 260/280 | 80 | 4622×3302×4470 |
| PYD2200 | 100 | 5-15 | 120-340 | 260/280 | 81.4 | 4622×3302×4470 |
