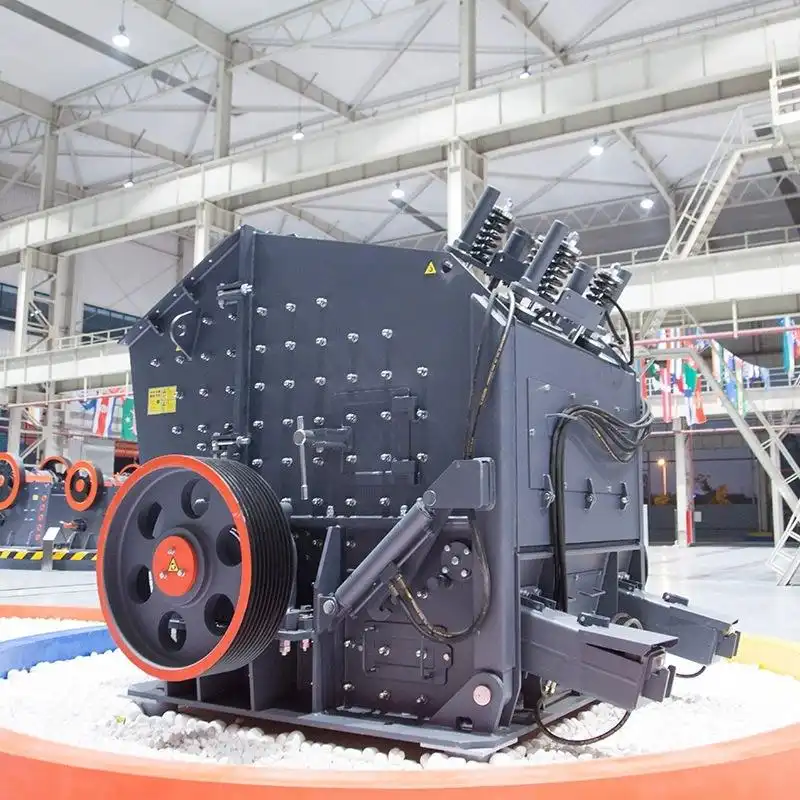

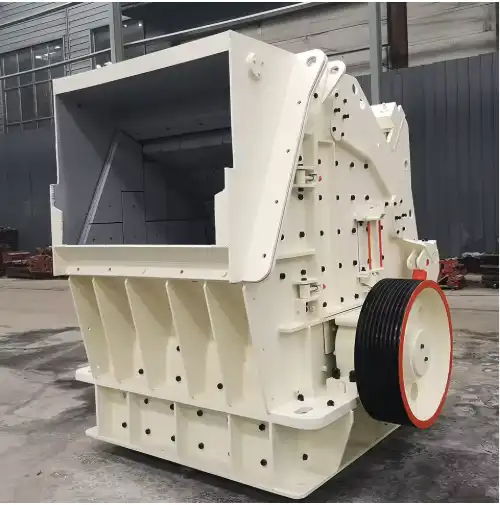

The PFS Strong Impact Crusher is a high-efficiency crushing machine designed for processing high-hardness and super-hard materials. The crusher features an optimized crushing chamber design, providing a large crushing ratio and high capacity while reducing equipment wear and extending its service life. With a large feed opening, the crusher is highly adaptable, able to process large-sized materials. It is widely used in mining, metallurgy, building materials, and chemical industries for various coarse, medium, and fine crushing applications.
| الطراز | نطاق المخرج القابل للتعديل (مم) | الحد الأقصى لحجم التغذية (مم) | السعة (طن/ساعة) | قوة المحرك (كيلوواط) | البعد الكلي (مم) |
|---|---|---|---|---|---|
| PFS1010 | 20-100 | 600 | 100-200 | 90-110 | 2800 × 1925 × 2305 |
| PFS1210 | 20-100 | 900 | 140-285 | 110-160 | 2871 × 1967 × 2600 |
| PFS1214 | 20-100 | 900 | 200-400 | 160-200 | 2871 × 2307 × 2600 |
| PFS1317 | 20-200 | 950 | 250-500 | 200-315 | 3175 × 2781 × 2800 |
| PFS1420 | 20-200 | 1000 | 400-600 | 315-375 | 3582 × 3205 × 3118 |
| PFS1620 | 20-200 | 1200 | 550-700 | 400-500 | 4056 × 3395 × 3356 |
