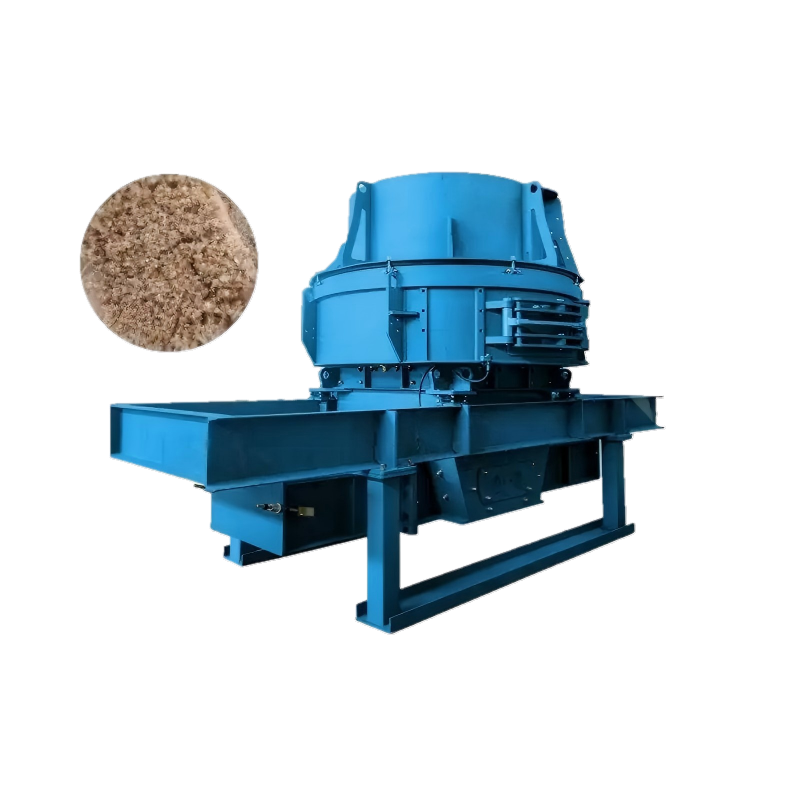

VSI5X is engineered for high-efficiency crushing and sand making. With optimized rotor design and advanced wear-resistant components, it produces well-graded, cubic-shaped aggregates and manufactured sand. Ideal for granite, basalt, river stone, and other hard materials, it supports continuous production in demanding job sites.

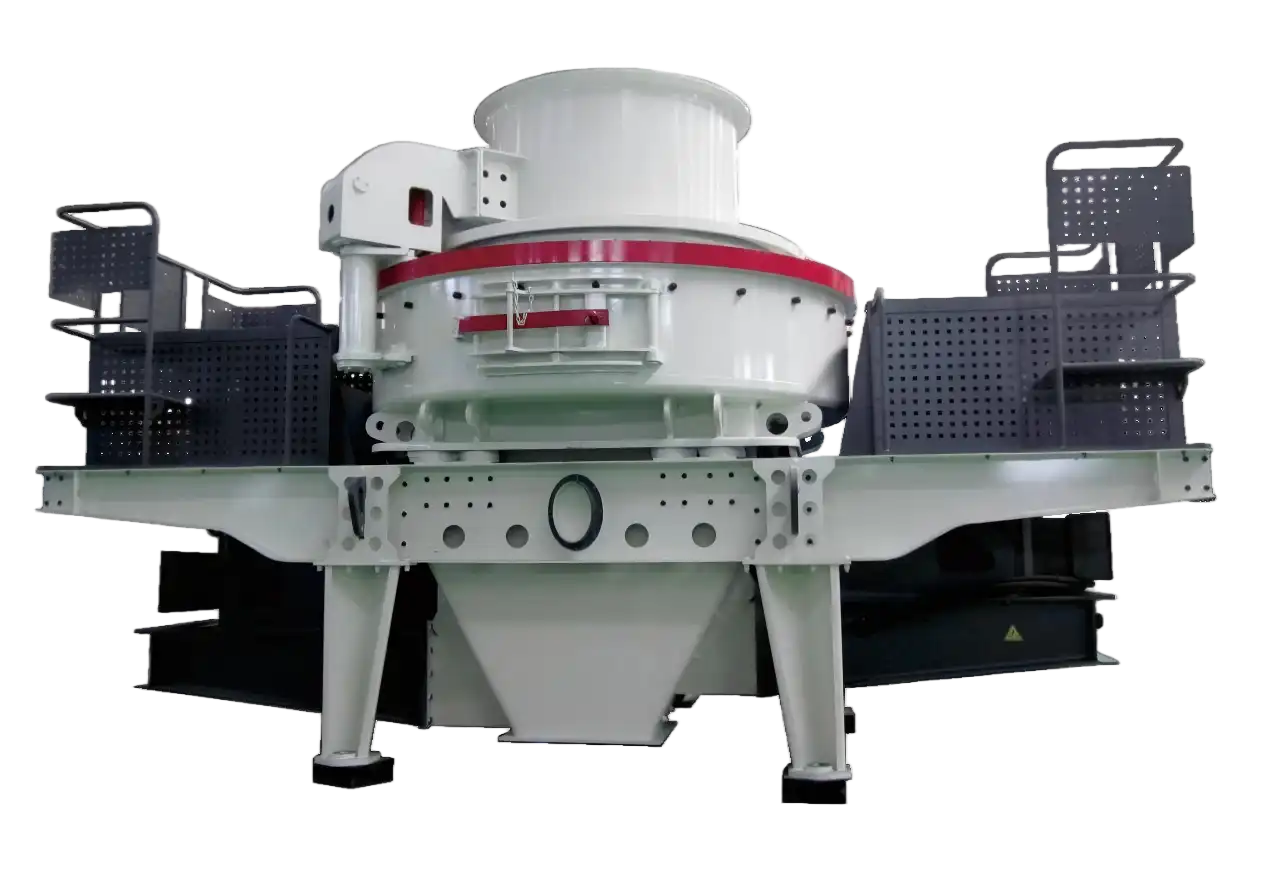

The VSI5X Vertical Shaft Impact Crusher represents an upgraded generation of sand making technology engineered for high-capacity and high-efficiency production. With an optimized deep-cavity rotor design and enhanced internal airflow management system, it achieves higher sand output rates and superior cubic particle shape.
Designed for demanding industrial environments, VSI5X reduces energy consumption while significantly extending wear part lifespan. It is ideal for large-scale quarry and mining operations requiring consistent performance, improved grading control, and long-term durability.
The VSI5X Vertical Shaft Impact Crusher utilizes an optimized deep-cavity rotor and enhanced rock-on-rock crushing technology. Raw material enters through the centralized feed system and is accelerated by a high-efficiency rotor with improved internal airflow control. The material is projected at higher velocity, generating stronger impact energy for superior particle shaping.
Through its advanced rotor dynamics and material collision control system, VSI5X achieves higher sand output rates, improved cubic particle formation, and reduced energy consumption, making it ideal for large-scale industrial production.
1. Precision Feeding – Centralized feeding ensures uniform material distribution.
2. High-Efficiency Acceleration – Deep-cavity rotor increases centrifugal force and throughput.
3. Enhanced Impact Crushing – High-velocity collisions maximize crushing efficiency.
4. Advanced Particle Optimization – Controlled internal airflow improves grading stability.
5. Efficient Discharge – Optimized discharge design supports high-capacity output.
Precision Feeding → Deep Rotor Acceleration → High-Energy Impact → Advanced Shaping → High-Efficiency Output
| Model | Capacity (TPH) | Motor Power (kW) | Max Feed Size (mm) | Rotor Speed (r/min) | Weight (t) | Dimensions (L×W×H, mm) |
|---|---|---|---|---|---|---|
| VSI5X-7615 | 70–140 | 110 | ≤ 35 | 1700–1900 | 13.5 | 4000×2200×2100 |
| VSI5X-8522 | 100–200 | 180 | ≤ 40 | 1500–1700 | 18.0 | 4300×2400×2250 |
| VSI5X-9532 | 180–350 | 315 | ≤ 45 | 1200–1500 | 25.0 | 4900×2700×2550 |
| VSI5X-1145 | 300–500 | 500 | ≤ 50 | 900–1200 | 33.0 | 5400×3100×2850 |
Customization Options: Our engineering team can tailor rotor and chamber configurations based on your raw material and target sand grading, including different wear parts (anvils/liners), feeding modes (central or cascade), motor brand options, local voltage standards, and automation upgrades for stable continuous production.
Configuration：
Vibrating Feeder → Jaw Crusher → Cone Crusher → VSI5X Sand Making Machine → Multi-Deck Vibrating Screen → Belt Conveyor System
Recommended for large-scale granite and basalt processing plants requiring high sand output rate and continuous heavy-duty operation.
Configuration：
Vibrating Feeder → Jaw Crusher → Cone Crusher → VSI5X Sand Making Machine → Vibrating Screen → Sand Washing System → Belt Conveyor
Designed for projects demanding superior particle shape, precise grading control, and improved sand cleanliness for high-grade concrete production.
Configuration：
Cone Crusher → VSI5X Sand Making Machine → Multi-Stage Screening System → Dust Collection System → Automated Control System
Suitable for fully automated industrial plants requiring energy-efficient production, reduced dust emission, and stable long-term operation.
1.Reinforced high-strength steel frame engineered for continuous heavy-duty operation
2.Precision multi-stage dynamic balancing to minimize vibration under high-speed conditions
3.High-chromium and modular wear components for extended service life
4.Comprehensive factory load simulation and vibration performance testing
5.Advanced electrical protection system with overload, emergency stop, and monitoring functions
6.Integrated dust reduction and environmental compliance solutions
7.Manufactured under strict industrial quality control standards for demanding production environments
Provide your material specifications and production targets.
Our engineers will recommend the most suitable model and configuration within 24–48 hours.
Material Type • Feed Size • Required Capacity • Output Size
